ZERO CLEARANCE FIREPLACE INSTALLATION SPECS

Pacific Energy FP16 Series A Wood Fireplace

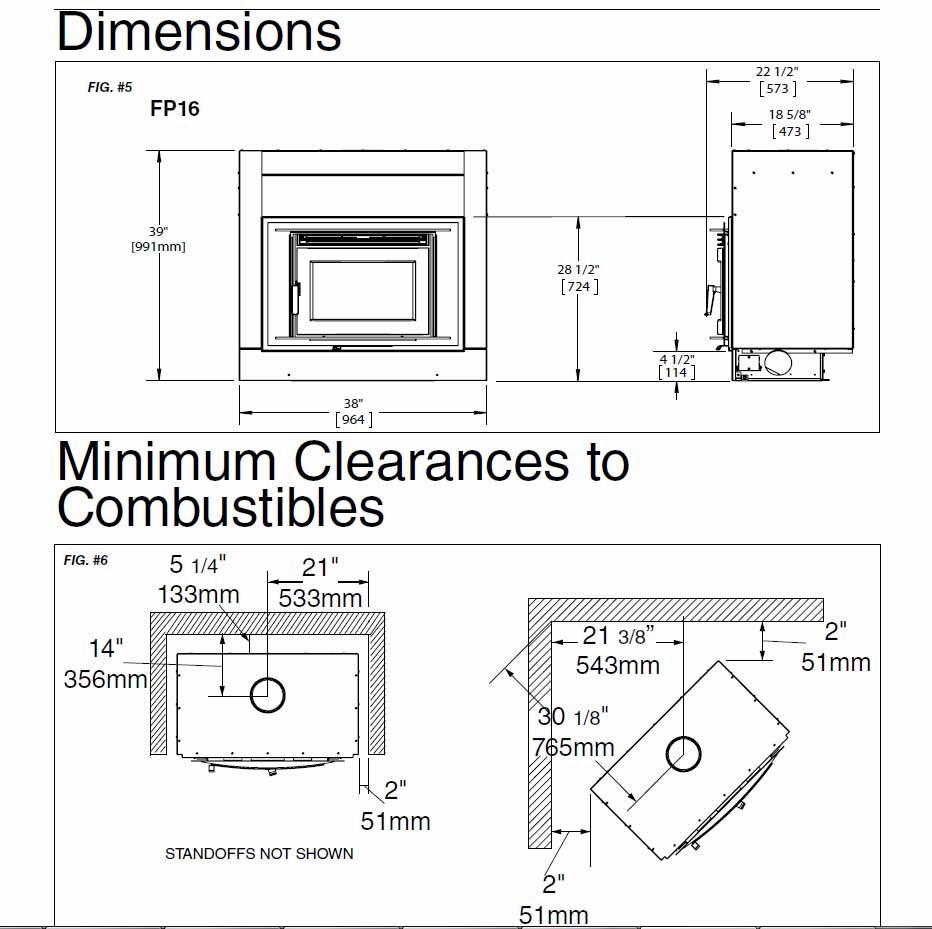

FP16 Wood Fireplace Dimenstions Diagram



Framing Dimensions

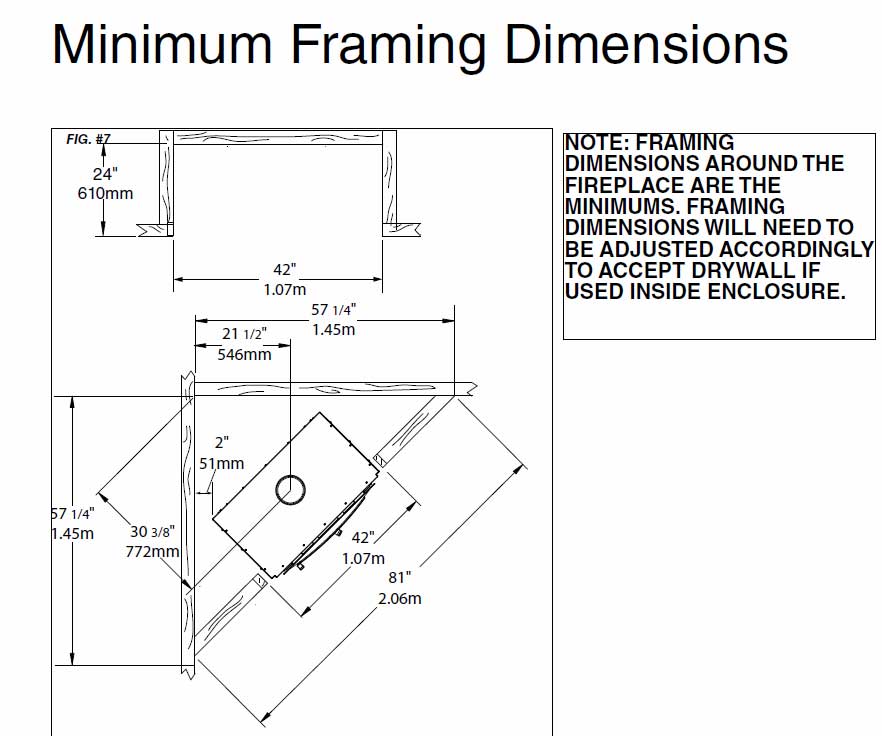

Pacific Energy FP16 Framing Dimensions Diagram

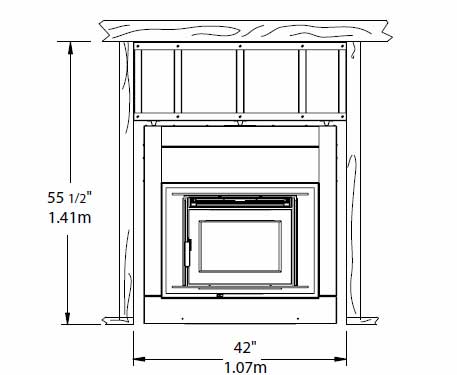

 Pacific Energy FP16 Header Dimensions Diagram



ELECTRICAL WIRING FOR BLOWERS
120 Volt power supply needed for standard dual 45 cfm room blowers.



The Pacific Energy FP16 may be installed using any of the UL 103ASHT chimneys listed below:

ManufacturerBrandTypeSize (ID)
SecuritySecure Temp ASHT1" Solid Pack6"
SelkirkUltra-Temp1" Solid Pack6"
ICCExcel1" Solid Pack6"
Simpson Dura-VentDuraTech Class A1" Solid Pack6"

Install Manual Button
Click to View or Download the FP16 installation manual in pdf format
