Although not completely relative to heat convection,.. I think these thermometers are a great way to monitor your stove at a quick glance.

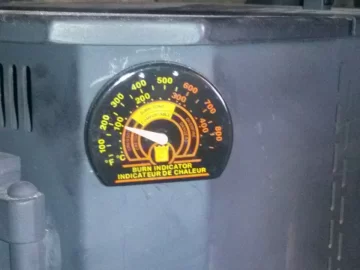

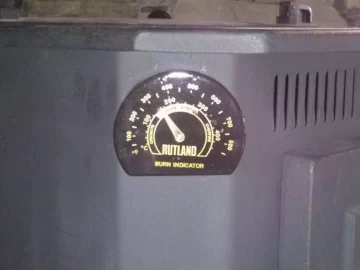

The intake/convection side runs aprox 150* lower than the exhaust side,... the black/gold thermo is the left side (exhaust),.. and the yellow/orange one lives on the right side, (intake/convection)
The vent pipe typically runs at the same temp as the left side of the stove,.. with the door temps being just down from that.
A good operating temp seems to be 350* left side and 200* right side,... although Ive had the left side up to 450*
The intake/convection side runs aprox 150* lower than the exhaust side,... the black/gold thermo is the left side (exhaust),.. and the yellow/orange one lives on the right side, (intake/convection)
The vent pipe typically runs at the same temp as the left side of the stove,.. with the door temps being just down from that.
A good operating temp seems to be 350* left side and 200* right side,... although Ive had the left side up to 450*
