Some of you may have seen my solar system I build last year. You can see the write up and pics here:

http://www.builditsolar.com/Projects/WaterHeating/Metal1K/Metal1K.htm

The first version had a simple temp controller that would turn the pump on when the collector reached a set temp, no differential control.

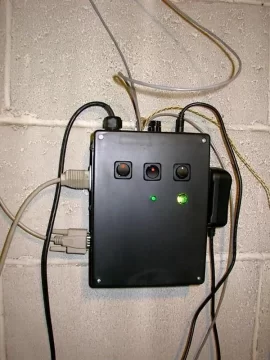

I wanted something better, after looking at several different controllers I purchased one of these:

http://www.mydtcstore.com/index.html

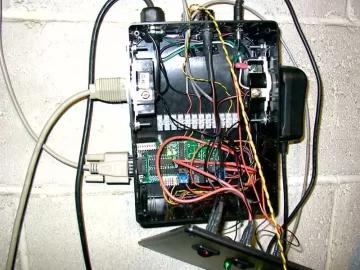

I have the DTC deluxe, it seemed to be a pretty good value, It had a lot of features for a reasonable price, I really like the data logging feature. I have it set to log every 5 min.

The controller is connected to a computer by a 25' serial cable, I can check the status and review the logs from upstairs easily.

Today was the first day I had it running with nice sunny weather, no clouds.

So far it is working quite well, the one 4' X 8' collector raised the temp of 100gl of water from 91 °F to 117 °F over the course of about 7 hr.

The next upgrade is to add another collector, I think this should be a good improvement.

Here is a portion of the log.

T1 is the collector
T2 is tank 1
T4 is tank2
R1 us pump relay

Display Logs :

DAY:HH:MM TICK T1 T2 T3 T4 T5 T6 T7 T8 R1 R2
001:09:07 0001 118 91 55 90 -13 -13 -13 -13 ON OFF
001:09:12 0002 118 91 55 91 -13 -13 -13 -13 ON OFF
001:09:17 0003 118 91 54 91 -13 -13 -13 -13 ON OFF
001:09:22 0004 119 93 55 92 -13 -13 -13 -13 ON OFF
001:09:27 0005 118 92 53 91 -13 -13 -13 -13 ON OFF
001:09:32 0006 120 92 54 92 -13 -13 -13 -13 ON OFF
001:09:37 0007 122 93 54 92 -13 -13 -13 -13 ON OFF
001:09:42 0008 123 93 55 93 -13 -13 -13 -13 ON OFF
001:09:47 0009 123 93 54 93 -13 -13 -13 -13 ON OFF
001:09:52 0010 125 94 53 92 -13 -13 -13 -13 ON OFF
001:09:57 0011 125 95 55 93 -13 -13 -13 -13 ON OFF
001:10:02 0012 126 95 55 95 -13 -13 -13 -13 ON OFF
001:10:07 0013 127 95 54 93 -13 -13 -13 -13 ON OFF
001:10:12 0014 128 96 55 95 -13 -13 -13 -13 ON OFF
001:10:17 0015 129 96 54 95 -13 -13 -13 -13 ON OFF
001:10:22 0016 130 97 54 95 -13 -13 -13 -13 ON OFF
001:10:27 0017 131 97 54 95 -13 -13 -13 -13 ON OFF
001:10:32 0018 132 97 55 97 -13 -13 -13 -13 ON OFF
001:10:37 0019 133 98 54 97 -13 -13 -13 -13 ON OFF
001:10:42 0020 133 98 54 97 -13 -13 -13 -13 ON OFF
001:10:47 0021 133 99 54 98 -13 -13 -13 -13 ON OFF
001:10:52 0022 134 101 55 100 -13 -13 -13 -13 ON OFF
001:10:57 0023 135 101 55 99 -13 -13 -13 -13 ON OFF
001:11:02 0024 133 101 54 100 -13 -13 -13 -13 ON OFF
001:11:07 0025 135 102 54 100 -13 -13 -13 -13 ON OFF
001:11:12 0026 136 102 54 100 -13 -13 -13 -13 ON OFF
001:11:17 0027 136 102 54 102 -13 -13 -13 -13 ON OFF
001:11:22 0028 136 103 54 102 -13 -13 -13 -13 ON OFF
001:11:27 0029 135 104 55 103 -13 -13 -13 -13 ON OFF
001:11:32 0030 138 104 55 104 -13 -13 -13 -13 ON OFF
001:11:37 0031 138 104 55 104 -13 -13 -13 -13 ON OFF
001:11:42 0032 135 104 54 104 -13 -13 -13 -13 ON OFF
001:11:47 0033 138 104 54 104 -13 -13 -13 -13 ON OFF
001:11:52 0034 138 106 55 105 -13 -13 -13 -13 ON OFF
001:11:57 0035 139 106 55 105 -13 -13 -13 -13 ON OFF
001:12:02 0036 138 106 54 105 -13 -13 -13 -13 ON OFF
001:12:07 0037 139 106 55 106 -13 -13 -13 -13 ON OFF
001:12:12 0038 138 107 54 106 -13 -13 -13 -13 ON OFF
001:12:17 0039 139 107 55 106 -13 -13 -13 -13 ON OFF
001:12:22 0040 139 107 54 107 -13 -13 -13 -13 ON OFF
001:12:27 0041 139 108 55 108 -13 -13 -13 -13 ON OFF
001:12:32 0042 139 109 55 108 -13 -13 -13 -13 ON OFF
001:12:37 0043 139 109 55 108 -13 -13 -13 -13 ON OFF
001:12:42 0044 139 109 55 109 -13 -13 -13 -13 ON OFF
001:12:47 0045 138 110 55 109 -13 -13 -13 -13 ON OFF
001:12:52 0046 139 110 55 109 -13 -13 -13 -13 ON OFF
001:12:57 0047 138 111 55 110 -13 -13 -13 -13 ON OFF
001:13:02 0048 139 110 55 110 -13 -13 -13 -13 ON OFF
001:13:07 0049 139 111 55 110 -13 -13 -13 -13 ON OFF
001:13:12 0050 136 112 55 111 -13 -13 -13 -13 ON OFF
001:13:17 0051 139 112 55 112 -13 -13 -13 -13 ON OFF
001:13:22 0052 138 113 55 112 -13 -13 -13 -13 ON OFF
001:13:27 0053 139 113 55 112 -13 -13 -13 -13 ON OFF
001:13:32 0054 139 113 55 112 -13 -13 -13 -13 ON OFF
001:13:37 0055 139 114 55 114 -13 -13 -13 -13 ON OFF
001:13:42 0056 138 114 55 114 -13 -13 -13 -13 ON OFF
001:13:47 0057 138 114 55 114 -13 -13 -13 -13 ON OFF
001:13:52 0058 138 114 54 114 -13 -13 -13 -13 ON OFF
001:13:57 0059 136 115 54 114 -13 -13 -13 -13 ON OFF
001:14:02 0060 136 115 55 115 -13 -13 -13 -13 ON OFF
001:14:07 0061 136 115 55 116 -13 -13 -13 -13 ON OFF
001:14:12 0062 135 116 54 116 -13 -13 -13 -13 ON OFF
001:14:17 0063 135 116 55 116 -13 -13 -13 -13 ON OFF
001:14:22 0064 136 116 53 116 -13 -13 -13 -13 ON OFF
001:14:27 0065 135 117 55 116 -13 -13 -13 -13 ON OFF
001:14:32 0066 135 116 55 116 -13 -13 -13 -13 ON OFF
001:14:37 0067 135 117 55 117 -13 -13 -13 -13 ON OFF
001:14:42 0068 134 117 55 117 -13 -13 -13 -13 ON OFF
001:14:47 0069 134 117 55 117 -13 -13 -13 -13 ON OFF
001:14:52 0070 132 117 55 117 -13 -13 -13 -13 ON OFF
001:14:57 0071 133 117 55 118 -13 -13 -13 -13 ON OFF
001:15:02 0072 132 117 53 117 -13 -13 -13 -13 ON OFF
001:15:07 0073 131 118 55 118 -13 -13 -13 -13 ON OFF
001:15:12 0074 131 118 55 118 -13 -13 -13 -13 ON OFF
001:15:17 0075 131 118 55 118 -13 -13 -13 -13 ON OFF
001:15:22 0076 129 118 55 118 -13 -13 -13 -13 ON OFF
001:15:27 0077 129 118 55 118 -13 -13 -13 -13 ON OFF
001:15:32 0078 129 118 54 118 -13 -13 -13 -13 ON OFF
001:15:37 0079 127 118 55 118 -13 -13 -13 -13 ON OFF
001:15:42 0080 126 118 55 118 -13 -13 -13 -13 ON OFF
001:15:47 0081 124 118 55 118 -13 -13 -13 -13 ON OFF
001:15:52 0082 118 117 55 118 -13 -13 -13 -13 OFF OFF



[afblue]

Good info I am looking for a DIY package that gives the best bang for the buck. This would be a perfect controller to run my plans of 100sq ft of collector charging a 900gal unpressurized tank in the "off heating season" and give the boiler a break.
