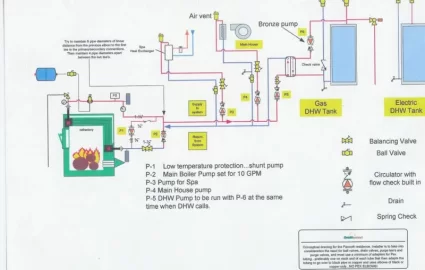

Piping diagram greenwood 200 please help

[docgogo]

help with piping diagram thanks keith



[djblech]

That is pretty much how my GW100 is hooked up. The main diff is that I only run 1 hx. Then circulate a short loop through my gas boiler to my manifolds. These contain dhw, 2-radiant loops, and 3 baseboard loops. The hook-up at the furnace is the same as mine. It took me 3 days to get everything hooked up with the help of a plumber. (my GW had to be changed over to this new system with the mixing valves and shunt pump.)
