Can someone post or point me to a piping diagram showing plate HX and wood-oil boilers piped parallel. I like the concept and cost factor of Plate HX's compared to copper coils.

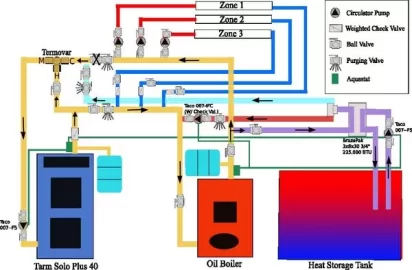

I am also in the process of designing heat storage. Here is the piping layout I am considering using. I am not a professional and would appreciate it if anyone sees any potential problems. I don't want to hijack your post. I just thought it might be constructive.
