Came home to a small box on the porch today. Zenon came through with the replacement.

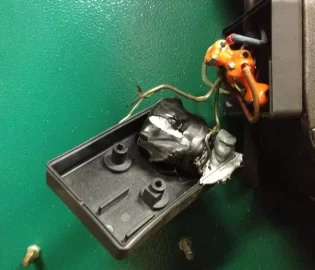

I have not had any experience with this type of motor. When opening the faulty capacitor and junction box 6 days ago, things were kinda messy in there. I have the blower mounted with the ground wire attached and don't know how to continue. In the photo, the ground appears to be attached at the wiring block but it is attached behind the wiring block.
The cable coming from the controller is a 3-wire, blue, brown and green. Blue is common, brown is line and the green ground. The blower motor is a 4-wire, green, blue, brown and black. The black shares a lug with one of the capacitor wires. Assuming the blue is common, one wire is determined. As for the other 3 I haven't a clue, nor do I know if there are any jumpers to consider.
So if my reasoning is correct the blue goes to blue and the brown needs a home. Where is that home? My thought is that it goes with a capacitor and black wire. Are any jumpers needed and where?
If someone could provide the answers, I would greatly appreciate it . If not, it will wait till tomorrow when Zenon can be reached.
