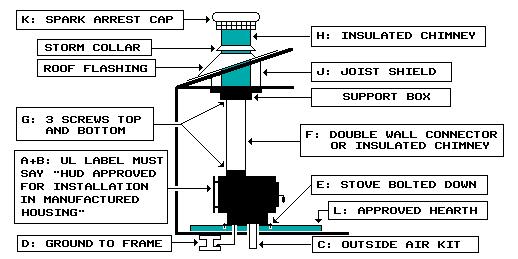

Woodstove Installation Requirements
For Manufactured Homes

(A) STOVE, PIPE AND CHIMNEY ARE U.L. LISTED

(B) STOVE IS H.U.D LISTED FOR MANUFACTURED HOME USE

(C) STOVE IS VENTED TO OUTSIDE COMBUSTION AIR

(D) STOVE IS GROUNDED TO THE FRAME OF THE MOBILE HOME

(E) STOVE IS BOLTED TO THE FLOOR OF THE HOME

(F) CONNECTOR PIPE (INSIDE) IS CHIMNEY OR DOUBLE WALL

(G) 3 SCREWS IN CONNECTOR PIPE AT STOVE AND CEILING

(H) CHIMNEY (CEILING UP TO CAP) IS TYPE "A" INSULATED

(I) PIPE AND CHIMNEY ARE SAME SIZE AS VENT ON STOVE

(J) JOIST AREA IS PROPERLY SHIELDED

(K) CAP IS EQUIPPED WITH A SPARK ARRESTOR SCREEN

(L) HEARTH IS SOLID, NONCOMBUSTIBLE AND UNBROKEN
